Tignes Funicular

Tignes Funicular

1992

The construction of the Tignes funicular by vehicles was a technological feat: the design imposed was a cylindrical cauldron, but as the doors had to be vertical on the slopes, the shape of the arches constituting the structure was ovoid

A structure conceived as a masterpiece

The cauldron consisted of a steel frame to which was riveted the aluminum structure supporting the composite exterior and interior cladding. Each of the boxes rested on two bogies.

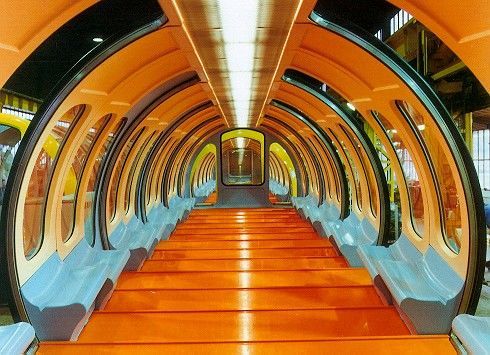

Tignes funicular in storage at Montmirail
Tignes funicular in storage at Montmirail

General characteristics

Diagram of the funicular railway of Tignes
Diagram of the funicular railway of Tignes

Characteristics of the funicular

Characteristics of the funicular
FeaturesValues
Number of vehicles per train set2
Number of seats per oar270
Length of the oar in metres 26.1
Width of the oar in metres 3.2
Number of bogies per oar
Length of travel in metres 2885
Elevation in metres 800
Maximum slope39%
