Locotractors B 200HL

Locotractors B 200HL

1981

The B 200HL tractors, designed for lighter manoeuvres, have often been built with industrial type transmissions (Twin-Disc, Clark etc...) to limit the amount of the investment.

simple and economical

The linkage of the axles to the gearbox by means of cardan shafts and the use of brake blocks make it a machine that is simple, economical and easy to maintain.

Locotractors B 200HL to Cameroon
Locotractors B 200HL to Cameroon

General characteristics

Diagram of the locotractor B 200H
Diagram of the locotractor B 200H

General characteristics of the B 200HL locotractor

General characteristics of the B 200HL locotractor
FeaturesValues
Total weight 28 to 36 tonnes
Longueur8100
Empattement4010
Wheel diameter1050
Minimum curved entry rail 50 metres
Maximum speed 48 km/h
Hook effort (limited by grip)11 tons
180 to 250 horsepower
Twin-Disc Twin-Disc
Gearbox reduction1°: 6.321 2°: 3.175 3°: 1.165
Bridge

Power curve

Tensile strength B 200 HL

Special features

General characteristics of the B 200HL locotractor
CustomerSpecific Features
Alucam / Cellucam Twin Disc box with 3 speeds forward and reverse.
Gecamines TwinDisc box 44511.2 which has four forward and reverse speeds but only the 3° and 4° are used.

Related machinery

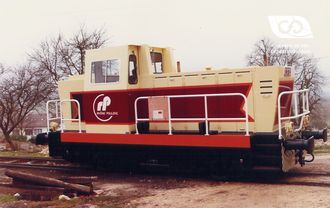

Locotractors B 350H
