Locotractors C 500H

Locotractors C 500H

1977

The first 3-axle locotractors with powershift gearboxes were manufactured for the Cimenterie de l'Orientale (CIOR) in Morocco. The objective was to ensure the manoeuvring of heavy trains. For this purpose, the use of two 3-axle locotractors, which could be coupled together, was a technically simple solution.

Same drive train as the B350

The Company took over the power train of the two-axle locotractors with a more powerful 500 horsepower engine and a 17 or 18-inch Borg-Warner hydraulic converter (two-axle locotractors use only a 17-inch converter).

3-axle locotractor for Elf Feyzin
3-axle locotractor for Elf Feyzin

General characteristics

Diagram of the locotractor C 500H
Diagram of the locotractor C 500H

General characteristics of the locotractor C 500H

General characteristics of the locotractor C 500H
FeaturesValues
Total weight60 to 66 tons
Longueur9200
Empattement3100
Wheel diameter1050
Miniature curved rail60 metres
Top speed 28 km/h
Hook effort (limited by adhesion) 24 tonnes
Diesel 400 to 600 horsepower
ConverterBorg Warner 18-inch
First: 4.72 second: 2.46
BridgeCFD ratio 6.26

Power curve

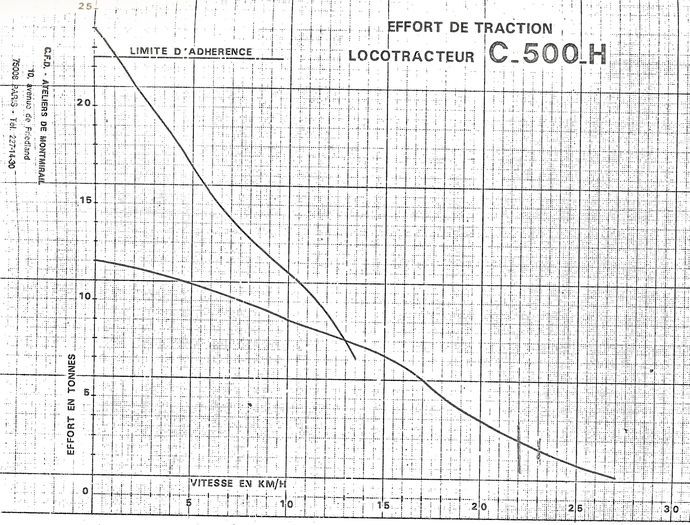

Locotractor type C500H-Traction curve
Locotractor type C500H-Traction curve

Special features
