Locotractors B 350H

Locotractors B 350H

1974

The B 350H locotractors were designed by CFD in 1974 for the industrial branch line market, until then dominated by the Moyse company, which offered diesel-electric locotractors with chain transmission.

A machine to compete with Moyse

The B 350H locotractor with its CFD powershift gearbox provided the same tractive effort as the Moyse machines, but by replacing the chains with a linkage to the axles via axles and cardan shafts, and the brake cylinders with brake blocks, the CFD machine had reduced maintenance costs.

B350 for Rhone-Poulenc
B350 for Rhone-Poulenc

General characteristics

Diagram of the B350H locotractor

General characteristics of the B350 H locotractor

General characteristics of the B350 H locotractor
FeaturesValues
Total weight40 to 44 tonnes
Longueur9190
Empattement3850
Wheel diameter1050
Minimum curved entry rail60 metres
Top speed 28 km/h
Hook effort (limited by grip)20 tons
Diesel300 to 400 horsepower
ConverterBorg Warner 17-inch
First: 4.72 second: 2.46
BridgeCFD ratio 6.26

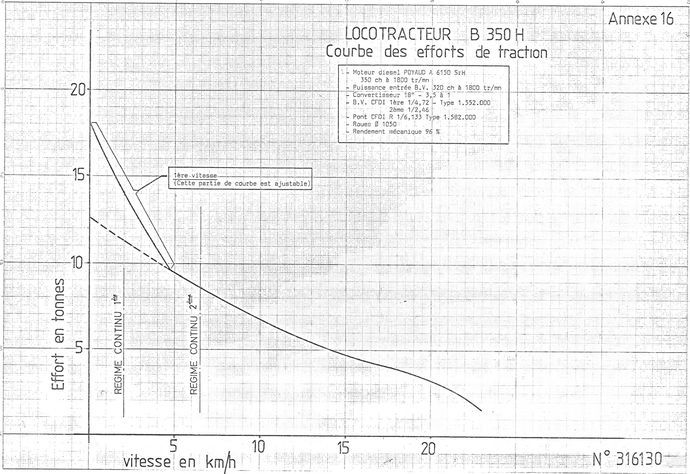

Power Curve

Tensile Bending B 350H
Tensile Bending B 350H

Special features

Locotractor variants B 350 H
CustomerSpecific Features
Transfesa The locotractor is equipped with variable gauge standard track/wide-track axles
TSOL The locotractor is equipped with a CFD gearbox with 2 speeds and 2 ranges
Cogefar Deck reduction is three instead of 6.26.

Related machinery

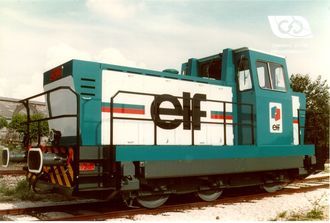

Locotractors C 500H

The first 3-axle locotractors with powershift gearboxes were manufactured for...

Locotractors C 500H

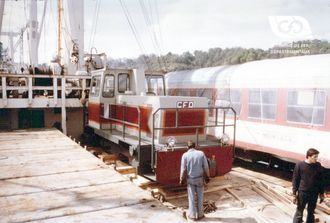

Locotractors B 200HL

The B 200HL tractors, designed for lighter manoeuvres, have often been built ...

Locotractors B 200HL

Y 7400

With 489 units, the Y 7400 is the largest series of locotractors ever made in...

Y 7400

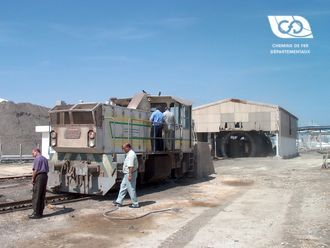

Locotractor B350 EC
