Autorail type 1200/2000

Autorail type 1200/2000

1975

The first railcar manufactured by CFD at the Montmirail workshops for the Corsican network succeeds in meeting the challenge of being at the same time inexpensive to purchase, economical in operation with high performance thanks to its high power-to-weight ratio

Simple, efficient and economical

In order to reduce its cost, it was agreed with the customer to use road transport techniques for its manufacture and to have a service life of 15 years. They will be used for more than 30 years. The fuel savings achieved with this railcar were considerable for the network.

On its release at the CFD workshops in Montmirail
On its release at the CFD workshops in Montmirail

General characteristics

x2000 diagram
x2000 diagram

Features X 2000

Features X 2000
FeaturesValues
Total empty weight18 tons
Loaded weight and running order25 tons
Length off buffers
Overall width2700
Hauteur3120
Empattement bogie2000
Entraxe pivots10400
Wheel diameter600
Fuel tank in litres200
Minimum curved line in metres60
maximum speed in 4° speed in km/h85
Diesel engine 2 x BMAN 165 hp. at 2500 rpmD O 846HM 42 U
2 4-speed CFD Asynchro gearboxes + reverse

Power curve

Performance X 2000
Performance X 2000

Special features

Related machinery

Autorail X 5000

Twin-engine railcar equipped with two CFD powershift gearboxes and bogies wit...

Autorail X 5000

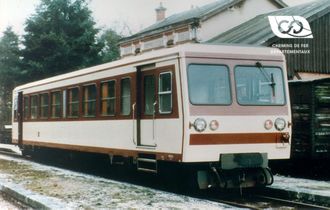

Autorail X 240
