Autorail X 5000

Autorail X 5000

1981

Twin-engine railcar equipped with two CFD powershift gearboxes and bogies with all axles driven. Its heavier and more powerful design than that of its predecessors allowed it to tow a trailer in its operation in Corsica.

4 drive axles for improved grip

By having all its axles driven, the grip qualities of this railcar have been greatly improved compared to the previous generation.

The X5002 railcar in tests in Corsica
The X5002 railcar in tests in Corsica

General characteristics

X5000 diagram
X5000 diagram

X5000 Railcar Features

X5000 Railcar Features
FeaturesValues
Unladen kerb weight in tons34
L laden weight in tons38
Number of seats48
Length between buffers16.8
Overall width2.7
Hauteur3,225
Bogie wheelbase in metres 2.1
Pivot spacing in metres11.0
Wheel diameters in metres0.750
Fuel tank in litres2 X 240
Minimum curved line in metres60
Maximum speed in 2nd gear with lock-up in km/h87
MAN diesel engine 230 hp at 2200 rpm2566 MUH
CFD Powershift 2-speed gearboxes and lock-up

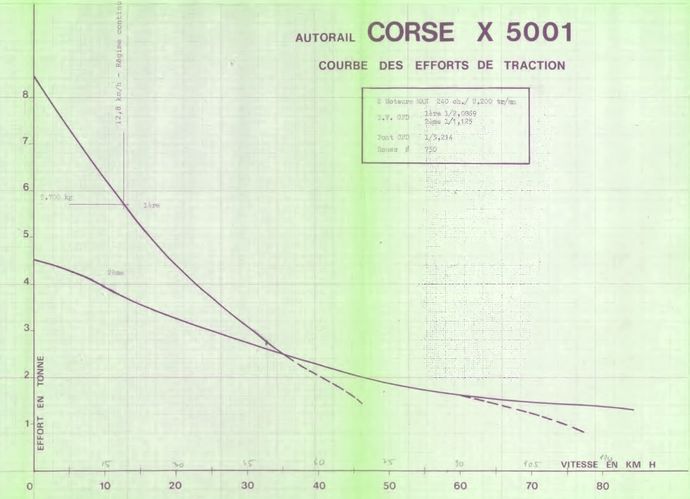

Power curve

Pulling force X 5000
Pulling force X 5000
