Autorail X 240

Autorail X 240

1983

These railcars were built for the Blanc-Argent network, where the axle load was limited to 8 tons. The design was made by CFD's engineering and design department, including for the boiler, which was built by Socofer.

A light railcar for driving on a lightly armed track

Although these railcars are based on some of the construction principles of the Corsican X5000 railcar, but with a single engine and a Voith T211 gearbox, this is in fact a new study as the constraints linked to weight limitation are so important.

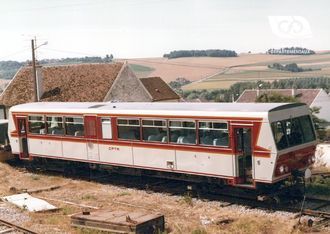

Autorail X 240 du Blanc-Argent
Autorail X 240 du Blanc-Argent

General characteristics

Diagram X 240
Diagram X 240

Characteristics railcars X 240

Characteristics of the X 240 railcar
FeaturesValues
Unladen kerb weight in tons25
Loaded weight in tons30.5
Number of seats54
Length between buffers18.3
Overall width2.7
Hauteur3,275
Bogie wheelbase in metres 2.1
Pivot spacing in meters11.0
Wheel diameters in metres0.750
Maximum speed in km/h85
Diesel engine Poyaud 177 KW at 2200 rpmL 520
Gearboxes Voith T 211 R

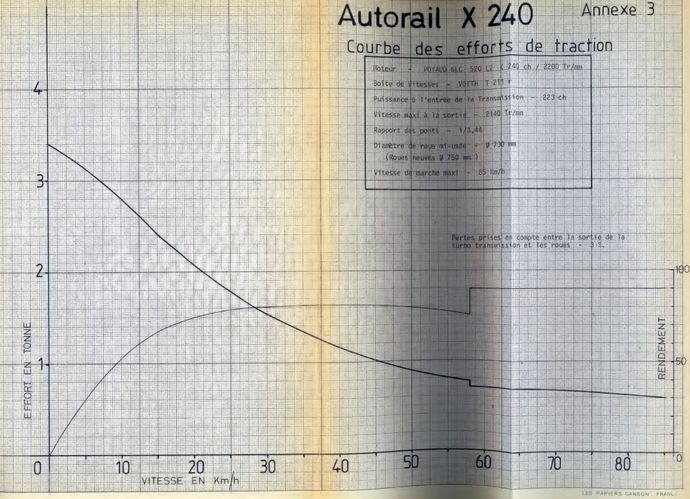

Power curve

Pulling force X 240
Pulling force X 240

Related machinery

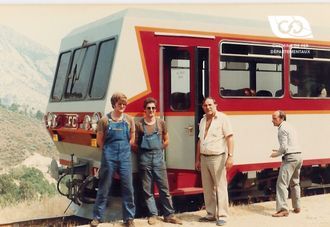

Autorail X 5000

Twin-engine railcar equipped with two CFD powershift gearboxes and bogies wit...

Autorail X 5000

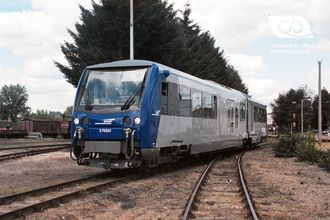

Autorail X 74500

These articulated railcars with 3 bogies were built by CFD in Bagnères for t...

Autorail X 74500

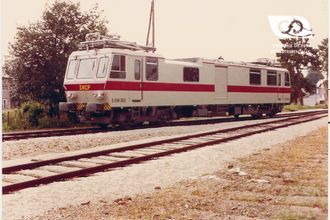

EMC railcar

These railcars were manufactured for the SNCF in order to maintain the catena...

EMC railcar

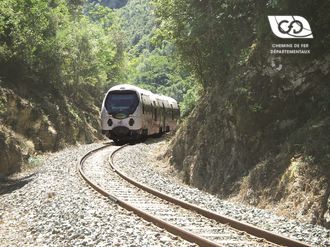

Autorail AMG

AMG railcars represent modernity for metric rail networks: high performance, ...

Autorail AMG

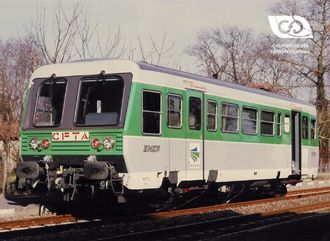

Autorail A2E
