On-axle gearbox for medium loads

Little brother of the PR21 railway gearbox, the PR18 railway gearbox is dedicated to lighter machines (railcars, maintenance-of-way vehicles). It retains the same design with its two integrated reduction stages but in a smaller volume.

Presentation

The CFD PR18 railway gearbox is designed for a diameter of wheel bore up to 185mm, allowing up to 16 t or more of axle load. Unlike the PR21 axle, the bevel gear is installed on the axle. This assembly allows the possibility of creating a single-stage secondary railway gearbox, necessary depending on the type of bogie used. The primary stage consists of a parallel-shaft reduction stage located on the input shaft. CFD calculates its axles for intensive use, so the gear modules used guarantee an unrivalled service life and reliability.

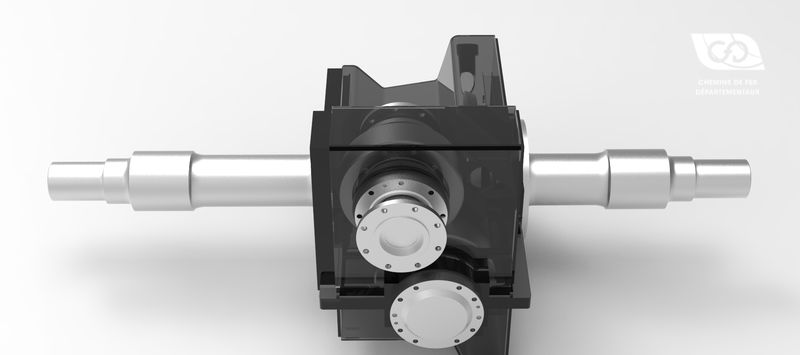

PR18 railway gearbox
PR18 railway gearbox

As standard, the railway gearbox is available with a ratio of 2.41 for passenger applications, for example, or with a ratio of 7.077 for mounting on light locomotives (e.g. metric networks). Other ratios are available on request. The double reduction stages make it possible to easily adapt the final ratio without modifying the crankcase. The internal lubrication system ensures optimum operation of the bearings and gears.

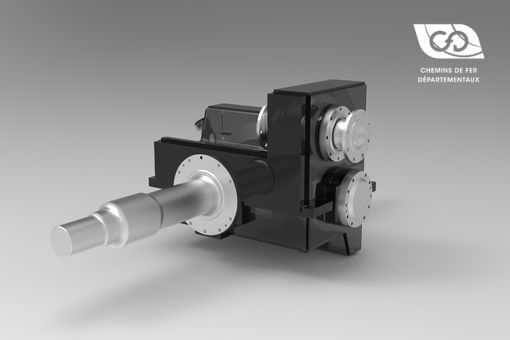

CFD PR18 railway gearbox view

CFD PR18 railway gearbox view

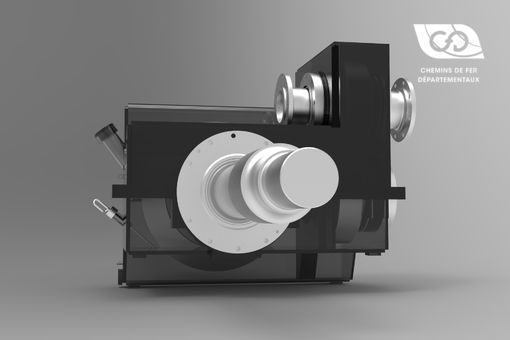

PR18 railway gearbox side view

PR18 railway gearbox side view

Application

Railcars
Light trains
Maintenance-of-way vehicles.

  • up to 16t axle load
  • reduction ratio of 2.48 or 7.077 as standard. Other ratios on request
  • double reduction stage
  • input flange DIN 180 or 225
General information
Lower gearKlingelnberg bevel gear
Top gearParallel helical gear
Maximum wheel bore diameter 185 mm
Maximum input rotation speed2900 rpm
Output torque36000 N.m peak
General information

EQUIPMENT

SPEED SENSORS
option
GREASE
internal pump
The list of equipment is not exhaustive. Other information is available on request
PR18 railway gearbox Diagram
PR18 railway gearbox Diagram
