Locomotive BB 1400H

Locomotive BB 1400H

1979

These BB locomotives are powered by two 720-horsepower diesel engines, each driving one bogie via a 2-speed, 2-range CFD powershift transmission.

A third diesel for slow motion

They also have a third 95-horsepower diesel that drives a slow-running, hydrostatic motor flanged to the CFD powershif gearbox.

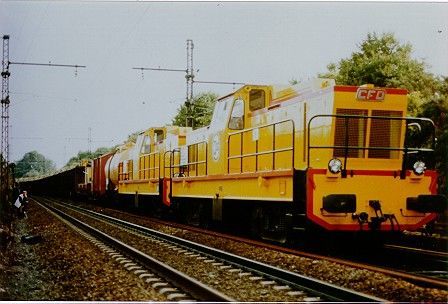

BB 1400H TSO Locomotives
BB 1400H TSO Locomotives

General characteristics

Diagram of Locomotive BB 1400H

General characteristics BB 1400H

{d}
General characteristics BB 1400H
FeaturesValues
Total weight80 tons
Longueur15040
Bogie pivot spacing8200
Bogie wheelbase2400
Wheel diameter1050
Minimum curved entry rail70 metres
Top speed92 km/h
Rim load 24 tons
Diesels: 2x MTU of 715 hp
2 ConvertersBorg Warner 18-inch
2 2-speed gearboxCFD powershift
4 BridgesCFD ratio 6.26
95 horsepower hydrostatic slow-moving unit

Power curve

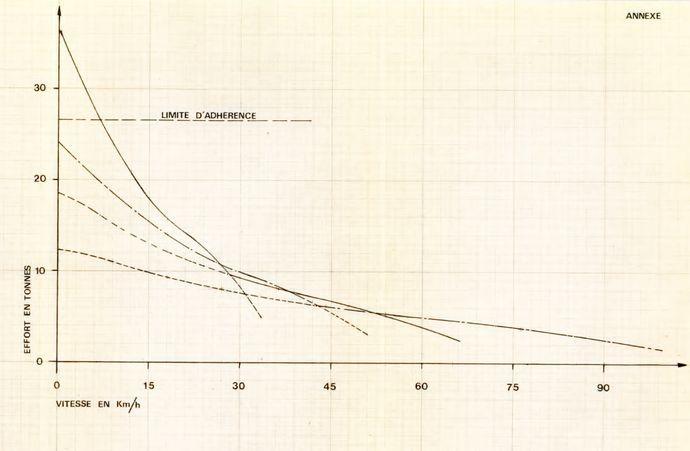

Tensile curve BB 1400H
Tensile curve BB 1400H

Special features
