Euskotren Locomotive

Euskotren Locomotive

2009

Locomotive in metric track, dual mode, made for the Euskotren network by CFD Bagnères in cooperation with Ingeteam which supplied the electric traction chain. The power is supplied either by diesel or by the catenary.

A dual-mode locomotive with a drive train with axles and cardan shafts

The bogies designed and manufactured by CFD are driven by electric motors cardanically connected to the axle axles.

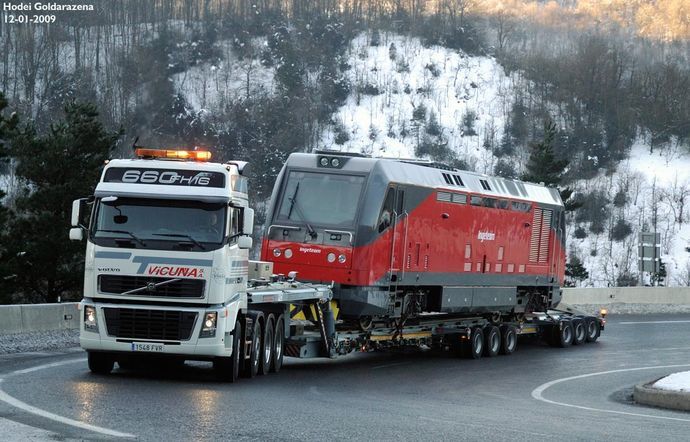

TD2001 in the Basque mountains
TD2001 in the Basque mountains

General characteristics

De-archiving in progress

Characteristics BB Euskotren hybrid

Characteristics BB hybrid Euskotren
Total weight64 tonnes
Longueur17000
Bogie pivot spacing9500
Axle spacing of a bogie2200
Wheel diameter860
Maximum speed80 km/h
Hookload on startup 26 tons
Caterpillar diesel 35121500 Kw
Catenary power supply1500 V

Power curve

De-archiving in progress
