Locomotive BB 1500HV

Locomotive BB 1500HV

1984

These twin-cab BB locomotives are equipped with a 1500 horsepower diesel engine and a Voith gearbox that drives the CFD axles of the trucks. The bogie-box connection is provided by traction rods.

Powerful but light

These locomotives are relatively light to take into account the constraints of the metric track network in Indonesia on which they operate.

Locomotive BB 1500HV in Java
Locomotive BB 1500HV in Java

General characteristics

Diagram of Locomotive BB1500 HV
Diagram of Locomotive BB1500 HV

General characteristics of the BB 1500 HV locomotive

{d}
General characteristics BB 1500 HV
FeaturesValues
Total weight52 tons
Longueur12780
Bogie pivot spacing6000B
Wheelbase of bogie axles2200
Wheel diameter914
Minimum curved entry rail 50 metres
Top speed120 km/h
Rim effort18 tons
GDiesels: 2x MTU of 715 hp
Gearbox Voith L 720 RU2
4 Bridges

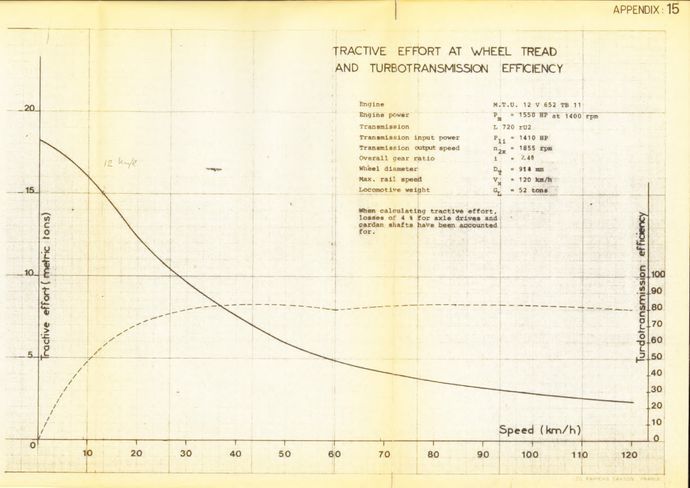

Power curve

Drawing curve BB1500
Drawing curve BB1500
