Locomotive BB 60001

Locomotive BB 60001

Single-engine locomotive equipped with a torque converter and an Asynchro gearbox which drives via cardan shafts the reversing axles mounted on one of the axles of each bogie. The second axle is driven by the first axle via connecting rods

A half-hydraulic, half-mechanical transmission

The originality of this locomotive was the presence of a converter between the diesel and the Asynchro gearbox, whereas on all other machines equipped with this type of gearbox a coupler was available. This allowed the use of a gearbox with only 4 gears, the first gear going up to 19 km/h in converter mode and up to 26 km/h in lock-up mode with which the converter was equipped.

BB 60001 at Montmirail
BB 60001 at Montmirail

General characteristics

Diagram BB 60001
Diagram BB 60001

Characteristics BB 60001

tons
Characteristics BB 60001
FeaturesValues
Total weight50 tons
Longueur11740
Bogie pivot spacing5550
Bogie wheelbase 2000
Wheel diameter860
Minimum curved rail60 metres
Maximum speed66 kph
Effort to the rim
Diesel Poyaud A12150355 kw
Asynchro CFDA 4-speed gearbox

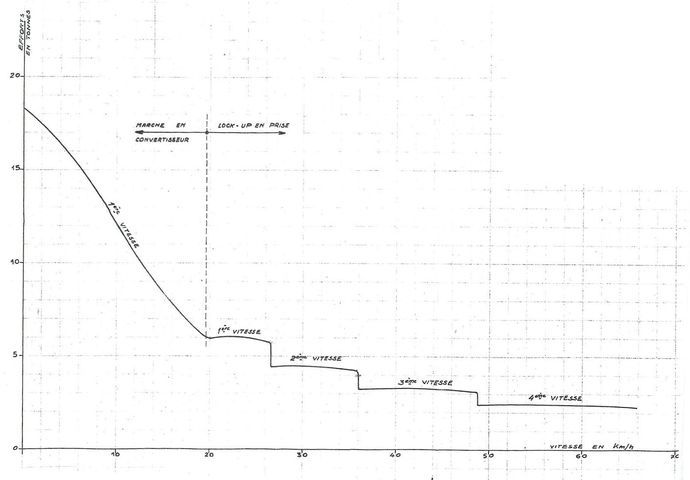

Power curve

Force curve BB 60001
Force curve BB 60001
