CFD bogie for BB locomotive

CFD bogie for BB locomotive

Two-axle driven bogie for locomotives

The type BB bogie is a new bogie developed for CFD locomotives by positioning the truck centre plate as low as possible in order to avoid running up, slippage and stress on the running gear. This single-stage suspension bogie has a solid structure for applications up to 22t/axle. Its recent design enables it to comply with all current standard requirements

Design

The structure of the bogie is based on a welded H-frame supported on both axles by primary coil spring suspension. Hydraulic shock absorbers provide a connection between the axle box and the bogie frame. A hemispherical support plate and two side plates provide the connection between the bogie frame and the locomotive frame. The lower part of the support is located in order to limit the effects of cabbing which can lead to loss of adhesion when taking off heavy loads. A version of this bogie with a high centre plate is also available.

Side view of the bogie for Locomotive BB
Side view of the bogie for Locomotive BB

With a wheelbase of 2.5m guaranteeing very good stability up to 100 km/h, the bogie is available in a carrier or engine version with several types of possible transmissions. For the DC solution, the bogie is available with the mounting of one or two CFD traction motors. There is also a version for conventional cardan shaft drive, in which case two mechanically connected CFD drive axles are available. Each axle is equipped with air brake blocks with and without parking brake.

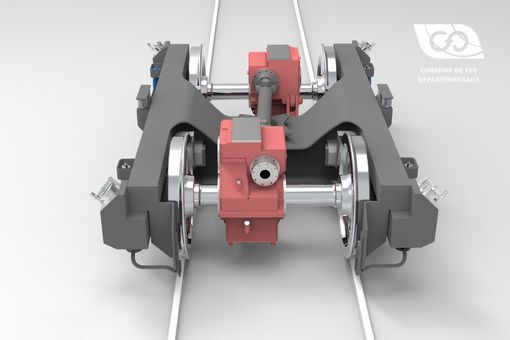

Front view Locomotive bogie BB

Front view Locomotive bogie BB

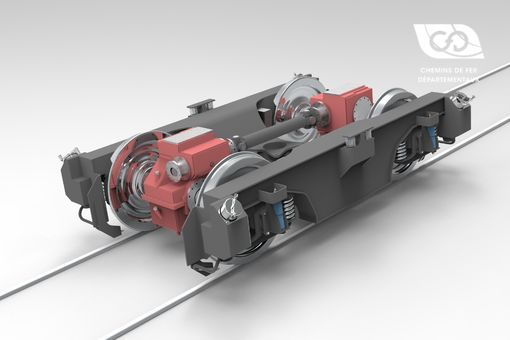

Perspective Bogie locomotive BB

Perspective Bogie locomotive BB

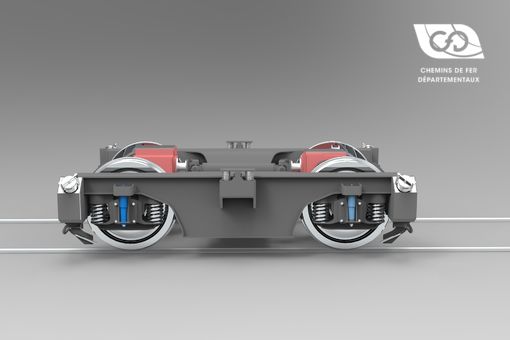

Profile View Locomotive Bogie BB

Profile View Locomotive Bogie BB

Application

Locomotives
Working engines.

  • conforming to European standards
  • excellent dynamic behaviour
  • heavy-duty
General information
Track gauge in mm1000/1435
Bogie mass from 5 to 10t depending on equipment
Axle load max22 t
Type of transmissionMechanical or electrical
Maximum speed 100 km/h
General information

EQUIPMENT

SPEED SENSORS
standard (option SIL 2)
REDUCED BRIDGE
axial or transverse, single or double stage
COIL LUBRICATOR
optional
SABLIERES
serial
The list of equipment is not exhaustive. Other information is available on request
Diagram of the new bogie for CFD Locomotive
Diagram of the new bogie for CFD Locomotive
