Two-axle bogie with 2-stage suspension

Historic manufacturer of passenger vehicles, CFD has a wide range of bogies for railcars or multiple-unit. The latest addition to the range is a double-stage suspension bogie for passengers transport up to 120 km/h.

Design

It consists of an H-shaped bogie frame structure placed on the axles. The primary suspension stage consists of coil springs and one hydraulic shock absorber per axle box. The secondary stage consists of air suspension and vertical and lateral shock absorbers. Traction rods provide the link between the bogie frame and the body and the shock absorbers limit pitch, yaw and roll movements. The air pressure in the secondary suspension flanges is controlled to correct the body height according to the load.

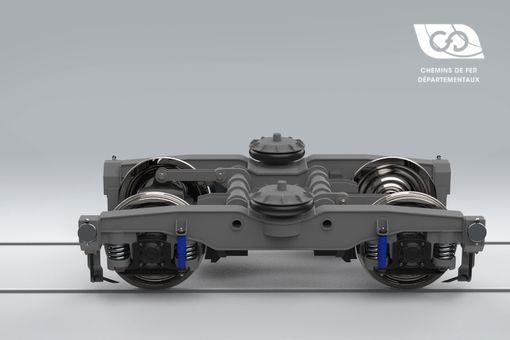

Side view of the CFD Bogie for passengers application
Side view of the CFD Bogie for passengers application

Its 2.4m wheelbase and the structure of its chassis allow it to be equipped with CFD DC traction motors or conventional traction solutions using axles and cardan shafts connected to permanent magnet motors or a gearbox. The connection between two driving axles is made by cardan shafts. Each wheel is equipped with a tread brake unit for service braking and immobilisation functions. Disc brakes or electromagnetic brakes are also possible.

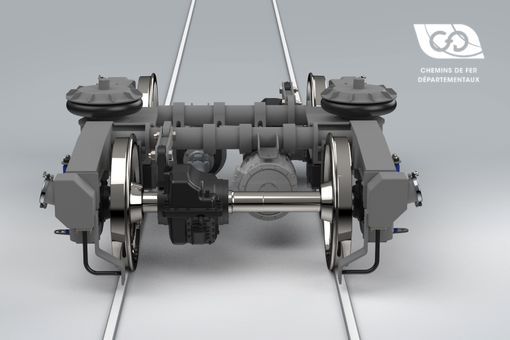

Front view Bogie CFD for passengers application

Front view Bogie CFD for passengers application

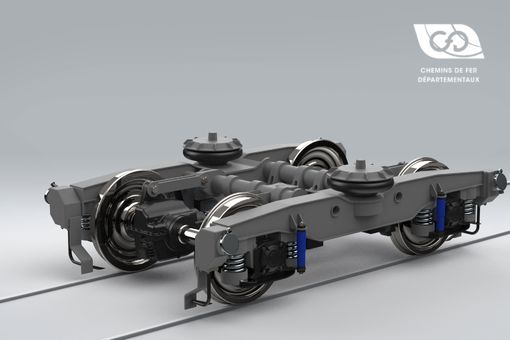

Perspective of the CFD Bogie for passengers application

Perspective of the CFD Bogie for passengers application

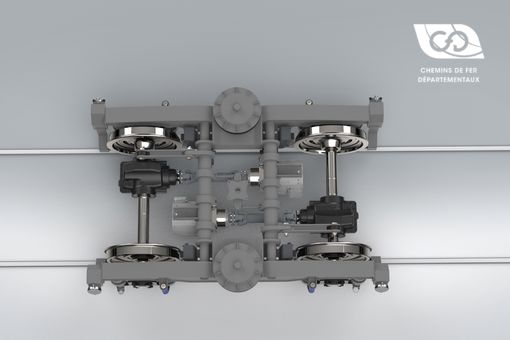

Top view of the CFD Bogie for passengers application

Top view of the CFD Bogie for passengers application

Side view of the CFD Bogie for passengers application

Side view of the CFD Bogie for passengers application

Application

Passengers railcars
Diesel multiple-unit
Electric multiple-unit
Maintenance-of-way vehicles.

  • in line with the new European standards
  • excellent dynamic behaviour
  • economic
  • dimensioned for 120 km/h (possibility of a high-speed version at 160 km/h)
General information
Track gauge in mm1000/(1067)/1435
Bogie mass from 5 to 8t depending on equipment
Axle load max. 16 t
Type of transmissionMechanical or electrical
Maximum speed120 km/h (160 km/h on request)
General information

EQUIPMENT

SPEED SENSORS
standard (option SIL 2)
REDUCED BRIDGE
axial or transverse, single or double stage
COIL LUBRICATOR
optional
BRAKING SYSTEM
Standard shoe brake blocks, optional disc brake and electromagnetic brake pads
SABLIERES
optional
The list of equipment is not exhaustive. Other information is available on request
Diagram of the CFD Bogie for passengers application
Diagram of the CFD Bogie for passengers application
To know more about it

Related machinery

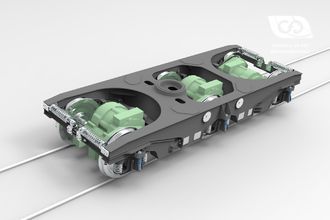

CFD TRIAX Bogie

Three-axle articulated bogie

CFD's innovative bogie, born from the development of the TRIAX locomotive, th...

CFD TRIAX Bogie

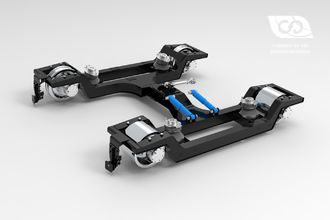

CFD bogies for funiculars

CFD bogies for the ski lift sector.

The funicular is the mode of transport whose characteristics are closest to t...

CFD bogies for funiculars

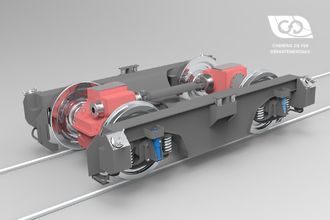

CFD bogie for BB locomotive

Two-axle driven bogie for locomotives

The type BB bogie is a new bogie developed for CFD locomotives by positioning...

CFD bogie for BB locomotive

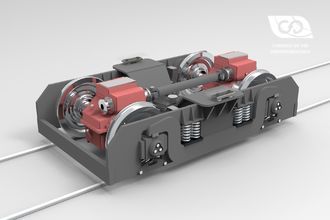

Bogie CFD PENNSYLVANIA
