CFD Diesel Locomotive Type TRIAX with Electric Traction

CFD Diesel Locomotive Type TRIAX with Electric Traction

Diesel electric bogie locomotive - 3 articulated driving axles

The TRIAX locomotive with its innovative articulated axle system is in fact the missing link between axle vehicles and bogie vehicles. Equipped with a diesel-electric transmission, the TRIAX locomotive with its three axles naturally fits into the tightest curves thanks to its two articulated end axles (passive or active system). Its high-powered engine and its architecture make it an ultra-versatile vehicle, capable of towing heavy loads in shunting yards or smaller convoys in line in the space of a shunter.

Presentation

Developed in-house for more than 10 years and confirmed by the production of a functional prototype, the TRIAX concept is CFD's answer to reconcile traction effort, compactness and dynamic track behaviour. Each axle has a dedicated traction motor giving it solid performance both at take-off and at high speed.

TRIAX Locomotive Profile
TRIAX Locomotive Profile

The axle articulation system designed by CFD allows for passage through very tight curves without damaging the track and for reaching high speeds (90 km/h or more) while maintaining good stability in straight lines, curves or on switches and crossings. The TRIAX configuration is such that the axles have a minimum angle with the rail in curves:The central axle is fixed in relation to the chassis. Each end axle is integral with a bissel which can pivot in relation to the bogie frame.

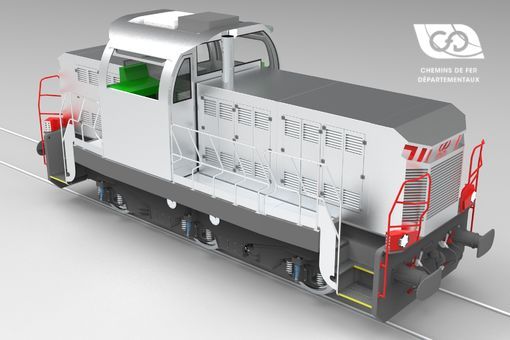

Perspective view CFD TRIAX locomotive

Perspective view CFD TRIAX locomotive

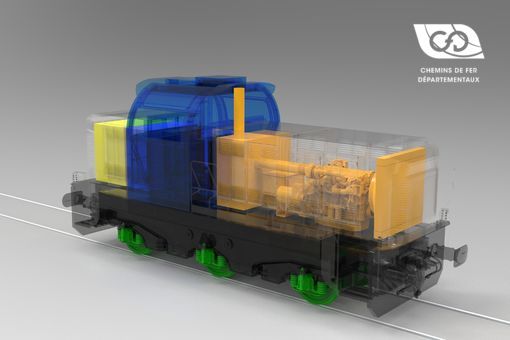

CFD TRIAX Locomotive Architecture

CFD TRIAX Locomotive Architecture

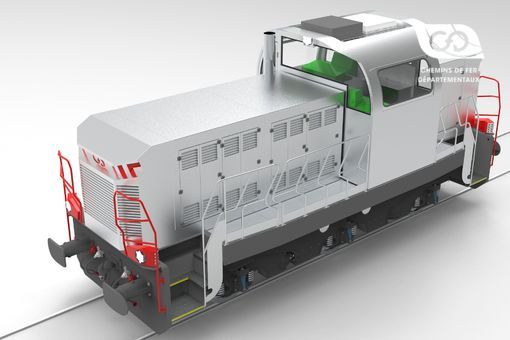

Perspective view TRIAX locomotive

Perspective view TRIAX locomotive

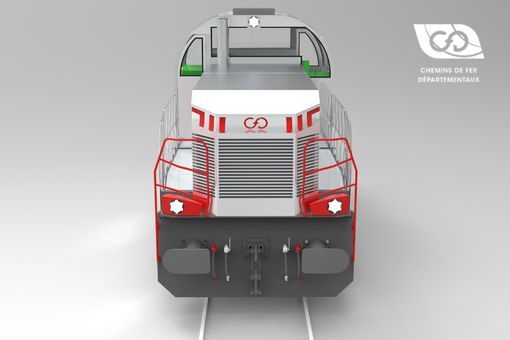

Front View CFD TRIAX Locomotive

Front View CFD TRIAX Locomotive

Axle steering control

The orientation of the bissel is carried out by a jack which positions the axle according to the curve of the track: It is the active guidance (System installed in option).The calculation of the ideal orientation of the bissel according to the track is then carried out by a processor following a software developed by CFD using the information coming from various sensors. In case of absence (or failure) of the guidance orientation system, a mechanical device positions correctly the bissels: It is the passive guidance.

Traction system

This vehicle is designed around CFD's direct current motor drive train. The DC drive train powers each of the three traction motors (one per axle). The system is very simple and allows exceptional take-off forces.The simplicity of the components, their robustness and ease of maintenance make this solution ideal for operations in harsh environments or isolated areas. The range of traction motors is based on proven DC locomotive series. Hybrid versions with on-board energy storage and catenary current collection will also be available in the near future.

  • up to 24.5 t (240 kN) of starting tractive effort
  • 20 to 22 t per axle
  • Clearance EN 15273-2
  • Diesel power from 540 to 840 HP / 400 to 620 kW
  • Maximum speed of 90 km/h or more
Performance
TechnologiesContinuous current
Traction motors3 x CFD DC C62 or equivalent
Traction motor power3 x 300 kW
Diesel engineCAT or VOLVO
Possible solutions especially with engines
CUMMINS, LIEBHERR, DEUTZ, MTU, JOHN DEERE, SCANIA or others.
Starting tractive effort24.5t (240 kN)
Performance chart

Power limitation

Each of the traction motors is designed for a continuous output power of 300 kW. The power limitation of the machine is therefore related to the power of the diesel engine that drives the generator. This results above all in a lower heating of the motors during traction phases and an exceptional durability.

Driver's cab

The driver's cab has been developed to be mounted on either TRIAX or BB locomotives with a design that offers excellent visibility from the driver's cab. It is equipped with diesel air conditioning and heating to warm up the diesel engine before starting it in cold weather. The side windows are based on an innovative concept allowing them to slide into the cab roof. The unobstructed opening allows the operator to have a wide view outside the cab and around the machine. A classic solution with sliding half windows is also available.

Diagram TRIAX CFD Locomotive
Diagram TRIAX CFD Locomotive

EQUIPMENT

FUEL CELL
1000 or 1500L
COMPRESSED AIR GENERATION
1800 L/min or 3600 L/min @ 10 bar
BRAKE SYSTEMS
UIC Pneumatic UIC (+ Rheostatic in option)
OPTIONS
GPS
Remote control
Slip control
Wheel slide protection
Dynamic braking
Cabin heater
Signalling equipment
Automatic couplers
Crash buffers
The list of equipment is not exhaustive. Other information is available on request. Use the configurator to find your machine among our range of new and used locomotives.
To know more about it

Related machinery

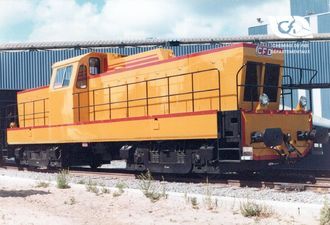

BB 800H Locomotives

These bogie locomotives with 600 to 900 horsepower are equipped with a CFD po...

BB 800H Locomotives

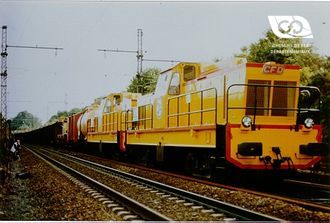

Locomotive BB 1400H

These BB locomotives are powered by two 720-horsepower diesel engines, each d...

Locomotive BB 1400H

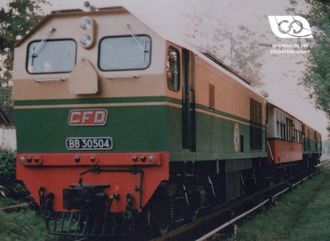

Locomotive BB 1500HV

These twin-cab BB locomotives are equipped with a 1500 horsepower diesel engi...

Locomotive BB 1500HV

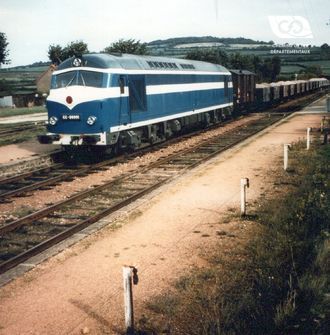

Locomotive CC 80001

Locomotive CC 80001 is equipped with two 1550-horsepower diesel engines and t...

Locomotive CC 80001

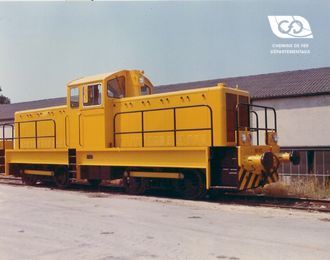

BB 600 Locomotives

The BB 600 locomotives are twin-engine machines with 2 Asynchro gearboxes tha...

BB 600 Locomotives

BB 71000 Locomotives

These locomotives were designed by CFD but manufactured by Fives-Lille. The t...

BB 71000 Locomotives

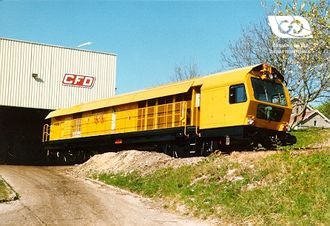

Locomotive BB 2200

Locomotives designed by CFD Industrie for the Scheuchzer company and built by...

Locomotive BB 2200

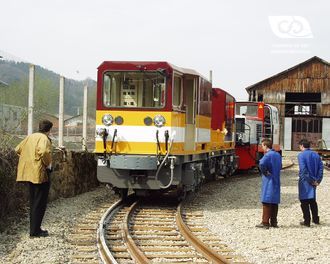

TME Locomotive

The 14 TME (Tractor with Electric Power) supplied by CFD Bagnères to the RAT...

TME Locomotive

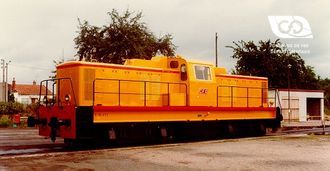

Locomotive BB 432

Locomotive BB 432 was the first CFD locomotive with an asynchronous gearbox t...

Locomotive BB 432

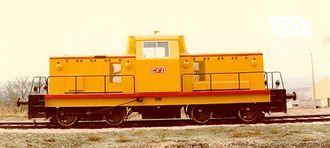

Locomotive BB 433

Twin locomotive equipped with two Asynchro gearboxes that drive the reversing...

Locomotive BB 433

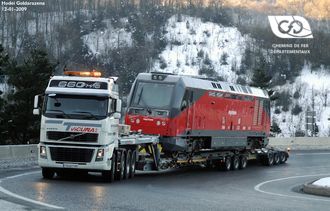

Euskotren Locomotive

Locomotive in metric track, dual mode, made for the Euskotren network by CFD ...

Euskotren Locomotive

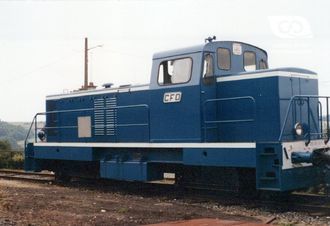

Locomotive BB 60001

Single-engine locomotive equipped with a torque converter and an Asynchro gea...

Locomotive BB 60001

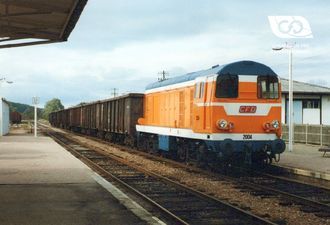

Locomotive Class 20

These locomotives manufactured by English Electric were purchased by CFD in E...

Locomotive Class 20

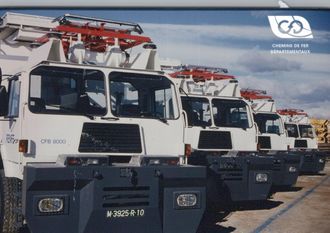

Road-rail FB 8000
